WEIGHING TRANSMITTER

WeighING instrument

93a+ / ct-a+100 series / et-709+


  • Model：AC-9100A+ Industrial and Commercial Weighing instrument.
  • Contains the Current Loop input/output interface.
  • The internal resolution is 520,000 scales with an accuracy of 1/50,000.
  • The A/D adopts the ΔΣ method and the sampling reaction speed is 200 times/second.
  • Contains 3 input points （Total of 7 items can be customized）.
  • Input sensitivity：0.25μV/d.
  • Resolution：1/50,000.
  • The display update rate is up to 50 times per second.
  • Input signal range：-30.5mV to 30.5mV.
  • Load cell excitation voltage：DC10V ± 5% （maximum current 150mA）.
  • Load capacity of the load cell：4 × 350 Ω.
  • Fast dynamic weighing and zero tracking stabilization.
  • Fast dynamic weighing seconds and zero tracking seconds setting function.
  • Opening size：about 182（W）× 92（H）mm.
  • The following are optional accessories.
  • OP 01 16 bits Analog output （4-20mA or 0-24mA）.
  • OP 02 16 Bits analog output （0-5Vdc）.
  • OP 03 16 Bits analog output （0-10Vdc）.
  • OP 04 Parallel BCD/BIN code output interface （Open Collector）.
  • OP 07 RS-422 communication interface.
  • OP 08 RS-232 communication interface.
  • OP 09 RS-485 communication interface （MODBUS RTU）.
  • OP 01、 02、 03、 04 can only choose one.
  • OP 07、08、09 can only choose one.
  • The product is packed in a carton with interlayer, the carton size is 30×30×18cm, and the weight is about 3kg.

9388a+ / ac- 8100a+ / cy-1000 / ac-7100dp


  • Model：AC-7100 / Industrial and Commercial Weighing instrument.
  • It can also be used in crane scales for various industrial and commercial use scales, various packaging machines, canning machines, inspection scales, truck scales or material testing equipment.
  • It contains 4 points of control output（OP-05 interface card） and 4 points of input （with positive and negative value judgment）.
  • Applicable to all resistance strain gauges and heavy duty weight sensors.
  • Microprocessor controlled operation.
  • Resolution：1/50,000.
  • The display update rate is up to 50 times per second.
  • Minimum sensitivity：0.25μV/d.
  • Zero adjustment range：-30.5mV to 30.5mV.
  • Load cell excitation voltage：DC10V ± 5% （maximum current 150mA）.
  • Load capacity of the load cell：4 × 350 Ω.
  • A/D sampling reaction rate：200 times / sec.
  • Internal A/D resolution：520,000 counts.
  • Sampling method：Delta-Sigma 24-bits.
  • Fast dynamic weighing and zero tracking stabilization.
  • Fast dynamic weighing seconds and zero tracking seconds setting function.
  • Opening size：about 92（W）× 45（H）mm.
  • The following are optional accessories.
  • OP 01 16 bits Analog output （4-20mA or 0-24mA）.
  • OP 02 16 Bits analog output （0-5Vdc）.
  • OP 03 16 Bits analog output （0-10Vdc）.
  • OP 04 Parallel BCD/BIN output interface （Open Collector）.
  • OP 05 Four-point optical coupling output.
  • OP 08 RS-232 Communication interface.
  • OP 09 RS-485 Communication interface （Modbus RTU）.

ac-3201t / 3201u


  • Model：AD-8F4 / 1.28K high-speed display for force indicator.
  • Applicable to all resistance strain force measuring and tension pressure or load sensors.
  • High-speed force measurement comparison up to 1280 times/s and multi-mode digital filtering.
  • Contains 3 transistor 24V/1A output comparators （optional 2-point relay 250V/3A output version）and 1 input.
  • The external input and output of the display adopts a photoelectric isolation method, and the interface needs to provide a DC 24V power supply as the input and output working power.
  • Inductor excitation voltage：DC5V±2%, maximum current 100mA.
  • Measuring voltage range：0.4mV/V～6.0mV/V.
  • Minimum input sensitivity： 0.15μV/d.
  • The sensor displays millivolt signal：-39mV～+39mV.
  • Maximum display accuracy：1/10,000 d.
  • A/D resolution 24-bits output rate：10, 40, 640, 1280 times/second.
  • Display components：five-digit 0.56 inches, red seven-segment code LED display tube.
  • LED display：net weight, peak, valley, peak minus valley, zero, stable, input, output.
  • Force measuring unit：gram g, kilogram kg, ton t, newton N, the force measuring unit can be customized.
  • Communication interface：RS232、485 Modbus（choose one）.
  • Communication protocol：Modbus RTU, free communication protocol.
  • Communication baud rate：1200～115200bps.
  • 12-bit analog output type：0～±10V, 0-20mA, 4-20mA.
  • Power supply：DC 12V-30V（DC24V recommended）, about 8W.
  • Appearance size：W96mm×H 48mm×D71mm.
  • Hole size：W92mm×H45mm.


  • Model：Sensolink F911R（S）Multi-function force indicator.
  • In Compliance with your requirements on measurements of weights, force & pressure, this indicator is designed into your ideal with micro processor chip, system linearity 0.01% and stability in high speed performance.
  • Outfitted with universal power supply in the hope of being fully compatible to your system in field.
  • Highly loaded DC power with capability of support 8 pcs 350Ω load cells.
  • Peak-hold function included and will verify you level of goods against this peak value.
  • Figured with dual display giving not only clear readout but easy, friendly operation interface.
  • 4 digital input & 4 relay output will increase versatility of your applications.
  • Multi-mode series communication interface & 16-bit analog output are geared toward pairing with various devices such as PCs or PLCs.
  • Model configuration table、More...

9351 / 9351r

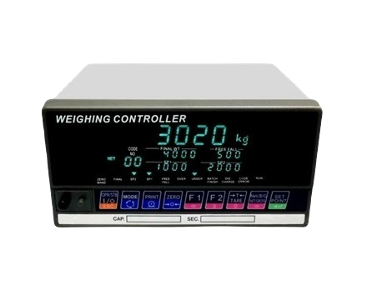

  • Model：AC-5100R  Single Material Control Weighing instrument.
  • Zero adjustable range：0 ～ +19mV.
  • Resolution：1/50,000.
  • Resolution：1/150,000.
  • Has a high sensitivity of 0.2μV/d.
  • Standard RS-232、422、485 （Modbus RTU） output.
  • Can display the current value, the completion value, the first quantitative before, the quantitative before, the drop, the overweight, the shortage and under.
  • Built-in 20mA Current loop output.
  • Sampling speed：200 times / sec.
  • Built-in simple formula metering function.
  • Standard control 8-point relay out、8-point input.
  • Measuring range：-19mV to +19mV.
  • Excitation voltage：5VDC Maximum current 114mA.
  • Power：85-265VAC, panel intrusion.
  • Opening size：about 186 （W）× 92 （H） mm.
  • Analog output：0-10V, 4-20mA （optional）.

9352 / 9352r



  • Model：AC-5200R  Multi-material control Weighing instrument.
  • Sampling speed：200 times / sec.
  • Resolution：1/50,000.
  • Set the memory for 100 group recipes.
  • Batch & Loss in weight metering method.
  • Eight 350Ω sensors can be connected in parallel.
  • Weight correction is done automatically.
  • Standard RS-232、422、485 （Modbus RTU）output.
  • Can display the current value, the completion value, the first quantitative before, the quantitative before, the drop, the overweight, the shortage and under.
  • Built-in 20mA Current Loop output.
  • Standard control 8-point relay output、8-point input.
  • Batch number and weight total function.
  • Built-in simple formula metering function.
  • The number and total weight of each group can be accumulated.
  • Analog output：0-10V、4-20mA （optional）.


  • Model：2006 / 2006C counting or measuring dual function display controller When operating the counting mode, you can select the single-input sampling mode and the known quantity sampling mode.
  • The setting value of each paragraph is calculated by the quantity at the same time for easy conversion.
  • You can switch between counting or weighing mode.
  • Counting mode can display both single weight and total.
  • Built-in general input, discharge, automatic input, automatic discharge metering mode.
  • With multiple material measurement group settings, groups can be entered by external keys.
  • 8 input and 8 output I/O interface （OP-01）.
  • Built-in 20mA current loop output can be connected to a large subtitle display.
  • Binary code decimal BCD output （optional OP-04）.
  • EIA-RS-232C serial output ASCII command mode （optional OP-02A）.
  • EIA-RS-485 serial output ASCII command mode （optional OP-02B）.
  • Analog analog output 0-10V （optional OP-06）.
  • Analog analog output 4-20mA （optional OP-05）.
  • 8-in 8-out relay control interface （optional OP-08）.
  • Print output interface （optional OP-03）.
  • Maximum display resolution 1/16,000.
  • Input sensitivity：0.3μV/d or above.
  • Display update frequency：10、20、40 times per second.
  • Power supply：AC110 or 220V （Jumper free switching）.
  • Appearance size：W190× H104× D248mm.
  • Panel cutout size：W180× H93mm.
  • Suitable for screws or packaging industry and commercial applications where counting is required.
  • It is suitable for subsequent replacement models of the original models AC-9200 and AC-9100B single material or multi-material weight controller.
