ac-3100a/b
- Model：AD-7800 High-speed 1.28K controller for force measurement and weight measurement transmitter
- Power supply：DC 10-30V（24VDC recommended）, power consumption about 8W.
- Sensor excitation voltage：DC5V±2%, maximum current 100mA, up to 6 350Ω sensors can be connected.
- Internal resolution：24bit（Binary）24 bits.
- Maximum display accuracy：1/10000.
- A/D sampling speed：10, 40, 640, up to 1280 times/second.
- Display element：six-digit 0.28-inch, red seven-segment high-brightness LED display.
- LED display：net weight, peak, valley, zero, stable, input 1/2, output 1/2/3 light signals.
- Panel buttons：SWITCH, ZERO / ▲, OFTEN / ▼, SET/CAL1.
- Communication protocol：Standard RS-232/RS-485 Modbus RTU or Free protocol（optional）.
- Communication baud rate：1200-115200bps.
- Analog output sampling speed：10, 40, 640, 1280Hz.
- Analog output resolution：12-bit accuracy 1/4000d, 0~±10V, 0-20mA, 4-20mA.
- External input/output：2 inputs, 3 optical coupling isolation transistors output 24V/1A.
- Overall dimensions：W72mm×H87.5mm×D58.7mm.
9383s / ac- 8300s
- Model：AD-8S weighing transmitter controller
- Model：AD-8M（Master） / AD-8S（Slave） Rail type weight signal converter.
- Applicable to all resistance strain gauges and heavy duty weight sensors.
- High-speed weight signal converter：AD-8M is a serial master, AD-8S is a system slave （single-machine can be used as a stand-alone weight signal converter）.
- Has per second：100 sampling rate.
- Resolution：1/100,000.
- High sensitivity：0.125μV/d.
- The display update rate is up to 40 times per second. Release instructions and human-machine interface, PLC and human-machine connection.
- The light signal indicates that the current weighing status is quickly interpreted.
- Multiple slaves can be connected in series with the host and up to 12 can be connected.
- Standard RS232 and RS485 dual output architecture, can connect PLC and man-machine at the same time.
- The host also has independent RS-232 or RS-485 Modbus and 9pin D-type output.
- Power supply：DC18-36V（Suggest 24VDC）.
- Rail mounting：35mm.
ac-9127u / 9327u
- Model：AD-8D Binary code decimal output weighing controller
- Has per second：100 sampling rate.
- Resolution：1/100,000.
- High sensitivity：0.125μV/d.
- Fast dynamic weighing and zero tracking stabilization. Fast dynamic weighing seconds and zero tracking seconds setting function.
- The display update rate is up to 50 times per second. A set of communication RS-232 Modbus RTU read and write.
- Standard parallel BCD output, optional binary BIN.
- Positive logic, negative logic interpretation choice. 20mA current loop Current Loop output.
- The release command is linked to the human machine and PLC.
- 3 points input, can be customized - Zero, deduction, deduction, gross weight / net weight, current ring printing.
- The connection of the weight controller is fixed as Baud 9600, 8 bits without parity, 1 stop bit （8N1）.
- Power supply：DC18-36V（Suggest 24VDC）.
- Rail mounting：35mm.
It can be applied to weight signal conversion such as rapid measurement and checkweigher.
9372
- Model：AC-7200 weighing transmitter（with display）
- Has per second：100 sampling rate.
- Resolution：1/50,000.
- Sensitivity：0.25 μV/d.
- Built-in 2 points （IN1、IN2）input, which can be customized.
- Built-in 2 point （SP1、SP2）optical coupling transistor output.
- The display update rate is up to 20 times per second. Fast dynamic weighing and zero tracking stabilization.
- The release command and the man-machine interface, PLC connection. The light signal indicates that the current weighing status is quickly interpreted.
- Power supply 24VDC，35mm rail mounting.
- Communication module RS232、RS485 Modbus RTU （optional）.
- Analog output module 0-5V、0-10V、4-20mA （optional）.
- There can only be one communication module.
- Appearance size：W101× H70× D87mm.

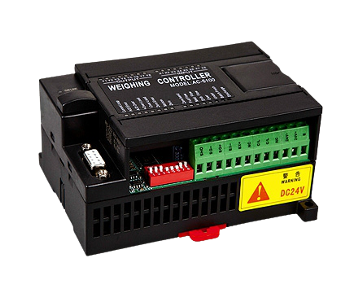

- Model：AC-6100 Single material batching controller for industrial use
- The highest resolution：1/100,000.
- Input sensitivity：0.2 μV/d or above.
- A/D sampling rate：100 times/sec.
- Measuring voltage range：-19V~+19mV.
- Three-stage output for single material, accurate batching and fast speed.
- 8-point input, 8-point optical coupling open collector output.
- 4 weighing sensors can be connected. Electronic weighing control design, high measurement accuracy, convenient calibration and easy maintenance. It can be equipped with man-machine interface, PLC, connected to this controller to perform quantitative measurement process control, 35mm guide rail installation.
- Power supply：DC18-36V （Suggest 24VDC）.
- Communication method：RS232、RS485.
- Communication protocol：Modbus RTU Protocol.
- Appearance size：W120×H80 ×D62mm.
- Model：AC-6200 Multi-material batching controller for industrial use
- The highest resolutio：1/100,000.
- Input sensitivity：0.2 μV/d or above.
- A/D sampling rate：100 times/sec.
- Measuring voltage range：-19V to +19mV.
- Three-stage output for single material, accurate batching and fast speed.
- 8-point input, 8-point optical coupling open collector output.
- 4 weighing sensors can be connected.
- Electronic weighing control design, high measurement accuracy, convenient calibration and easy maintenance.
- It can be equipped with man-machine interface, PLC, connected to this controller to perform quantitative measurement process control, 35mm guide rail installation.
- Power supply：DC18-36V（24VDC recommended）.
- Communication method： RS232、RS485.
- Communication protoc：Modbus RTU Protocol.
- Appearance size：W120×H80×D62mm.
